| Количество | Цена от (руб.)* | |
|---|---|---|
| SNU42-P0210-S08 | ||
| SNU42-P0410 | ||
| SNU42-P0420 | ||
| SNU42-P0610-S04 | ||
| SNU42-P1010 | ||
| SNU42-P1610 | ||
| SNU42-P2210 | ||
| SNU42-S04 | ||
| SNU42-S10 | ||
| SNU42-S16 | ||
| SNU42-S22 |
Спецификация:
| USB Specifications | |||
| USB | USB1.0,USB2.0 | USB connectors | Rotor : male / ,stator : male |
| BER | 10E - 11 | Insert loss | 2db |
| Power/signal Specifications | |||
| Circuits | 1~22(see table as above) | Current | Signal(2A),10A,Multiple 10ACurrent |
| Voltage | 440 VDC/VAC | Max speed | 250RPM |
| Housing Material | Aluminium Alloy | Torque | 0.08N.m |
| Working life | 50million revolutions | Contact materia | Precious Metal :Gold-Gold |
| Electrical noise | <10 milliohms | Contact Resistance | <100mOhm(AWG16#,300mm) |
| Dielectric strength | 1000VDC@50Hz | Lead Wire | UL Teflon® |
| Insulation resistance | 1000MΩ@600VDC | Lead Lengths | 250mm |
| Operating Temp. | -40°C to 80°C | Protection | IP51 |
| Mechanical vibratio | MIL-SID-810E | Humidity | 10% to 90% RH |
| Materials | Lead Free,RoHS compliant | CE Certified | YES |
Notes:
10A rings parallel can be used as multiple 10A large current.
For Example: 3 rings wires 30A, please see order instructions
- The operational life of the unit is dependent upon rotational speed, environment and temperature.
- Lead Wire size: 5A/signal -> AWG22#, 10A -> AWG16#, 20A -> Awg14, colored code.
- Electrical noise is dependent upon the rotating speed and current,voltage.
12 wires for one group color. from 13 ... 24, repeat the same color as 1 ... 12,indicated with number code pipe
Установка:
1. Position the slip ring in the desired location and tighten both set screws to the shaft. Maximum torque 25 lb-in. (do not over torque).
2. route the wiring and make the necessary connections. do not allow the stator side wiring to restrict free rotation of the slip ring. do not constrain wiring such that wire flexing (cold working) occurs. Doing so will ultimately cause failure (breakage of the wiring).

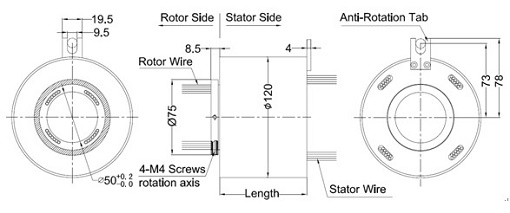

3. Position a screw or dowel (not Supplied) in the anti-rotation tab to the dimension as shown.
CAUTION: Because of possible geometric mismatching between the customer’s application and the slip ring, "hard mounting" of both ends of the slip ring (i.e., securing the rotor and stator such that there is NO floating during operation) is not recommended and may cause premature failure.
Опции:
- Can combine more wires:1-96Ring
- Specified connectors and Heat-shrink tube.
- Longer lead lengths available.
- Shielded cables
- Connectors
- Frequencies up to 500 MHz
- High-speed data transmission for fast Ethernet and EtherCat
- Signal, Coax, and Power combinations
- Thermocouples
- Shock, Vibration, and Temperature Qualified
