Спецификация:
| Ethernet Specifications | |||
| Ethernet | 1000M baseT | Ethernet connectors | RJ45 |
| BER | 10E - 11 | Insert loss | 2db |
| Power/signal Specifications | |||
| Circuits | 1~22(see table as above) | Current | Signal(2A),10A,Multiple 10ACurrent |
| Voltage | 440 VDC/VAC | Max speed | 500RPM |
| Through bore size | 12.7mm(0.5") | Overall diameter | 56mm(7/8") |
| Housing Material | Aluminium Alloy | Torque | 0.08N.m |
| Working life | 50million revolutions | Contact materia | Precious Metal :Gold-Gold |
| Electrical noise | <10 milliohms | Contact Resistance | <100mOhm(AWG16#,300mm) |
| Dielectric strength | 1000VDC@50Hz | Lead Wire | UL Teflon® |
| Insulation resistance | 1000MΩ@600VDC | Lead Lengths | 250mm |
| Operating Temp. | -40°C to 80°C | Protection | IP51 |
| Mechanical vibratio | MIL-SID-810E | Humidity | 10% to 90% RH |
| Materials | Lead Free,RoHS compliant | CE Certified | YES |
Установка:
- Align the mounting holes in the flange to mounting base and install flat washers and thread forming screws (NOT SUPPLIED) for plastic. Securely tighten screws.
- Route the wiring and make the necessary connections. Do not allow the wiring to restrict free rotation of the slip ring.

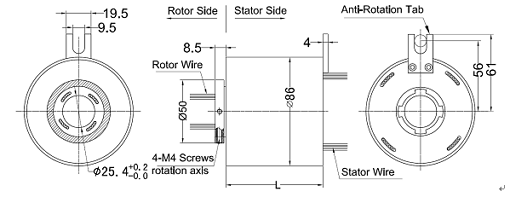

- Position a screw or dowel (NOT SUPPLIED) in the anti-rotation tab to the dimension as shown.
CAUTION: Because of possible geometric mismatching between the customer’s application and the slip ring, "hard mounting" of both ends of the slip ring (i.e., securing the rotor and stator such that there is NO floating during operation) is not recommended and may cause premature failure.
Опции:
- Can combine more wires:1-96Ring
- Specified connectors and Heat-shrink tube.
- Longer lead lengths available.
- Shielded cables Connectors Frequencies up to 500 MHz
- High-speed data transmission for fast Ethernet and EtherCat
- Signal, Coax, and Power combinations
- Thermocouples
- Shock, Vibration, and Temperature Qualified
- Pneumatic/Hydraulic Capability
- High temperature---up to 450 degree
- High Voltage & large Current(1000A)
- Military Grade.
